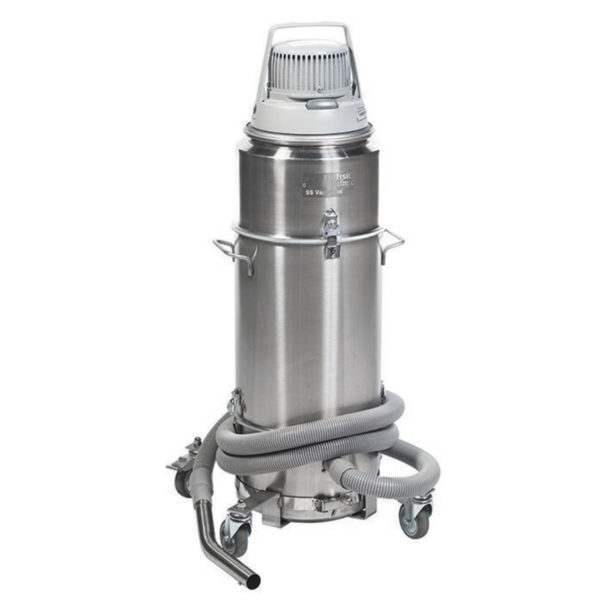

Nilfisk SS Vapor Regional Vacuum

SKU: ss-vapor

Price on request

Meet critical and challenging applications.

Voltage
Voltage
110/120V
220/230V
Collection Type
Collection Type
Vapor
Filter Type
Filter Type
HEPA
Type of Power
Type of Power
1-Phase
Airflow (cfm)
Airflow (cfm)
45 (cfm)
Container Capacity (gal.)
Container Capacity (gal.)
3.25 (gal.)
Sound Pressure (db)
Sound Pressure (db)
61 (db)
Call for Price

Specialty Vacuum for Toxic Materials

The Nilfisk SS Vapor recovers liquid mercury spills and granular mercury compounds effectively while absorbing mercury vapors. Designed for the unique requirements of the semiconductor industry, the Vapor vacuum captures toxic gases, such as arsine and phosphine, and chlorinated solvents released during the cleaning of process equipment.

Features and Benefits

  • In the first stage of separation, a 2.25-gallon capacity disposable paper bag captures the bulk of collected debris.
  • Extra-large main filter ensures a steady, even airflow which extends filter life and eliminates premature clogging.
  • The microfilter, a final step in pre-filtration, protects the motor and acts as a barrier to even bacteria-size particles.
  • Motor thermal protection device prevents overheating caused by failure to keep filters clean or by accidental blockage in a nozzle or hose.
  • Conductive plastic hose provides ESD protection.
  • The wheeled trolley adds mobility. Glides over all surfaces.
  • Positive twist safety latches offer security by preventing the container from opening if the vacuum is dropped.
  • The vacuum cleaner and accessories are packaged in cleanroom compatible polyethylene bags to prevent contamination from packing materials during shipping.
  • Activated carbon filter absorbs toxic gases, preventing their escape through the vacuum’s exhaust
  • Ten foot flexible plastic hose allows access through small ports of machinery
  • Standard downstream HEPA exhaust filter maintains absolute cleanroom standards by retaining particles generated by the motor

Technical Specifications

Description Unit SS Vapor
Collection Type - Vapor
Type of Power - 1-Phase
Voltage @ 60 Hz V 120 / 220
Power @ 60 Hz HP (W) 1.48 (1100)
Waterlift, max. in. (mm) H₂O 82 (2083)
Airflow, max. CFM (L/min) 45 (1274)
Current, max. amps 10/5
Container Capacity gallons (L) 3.25 (12.3)
Machine Inlet Diameter mm 32
Dimensions (L x W x H) in. (mm) 22 x 22 x 38.5 (559 x 559 x 978)
Weight lb. (kg) 65 (30)
Cord Length ft. (m) 30 (9)
Sound Pressure Level @ 3’3” (ISO 3744) dB(A) 61


Specialty Vacuum for Toxic Materials

The Nilfisk SS Vapor recovers liquid mercury spills and granular mercury compounds effectively while absorbing mercury vapors. Designed for the unique requirements of the semiconductor industry, the Vapor vacuum captures toxic gases, such as arsine and phosphine, and chlorinated solvents released during the cleaning of process equipment.

Features and Benefits

  • In the first stage of separation, a 2.25-gallon capacity disposable paper bag captures the bulk of collected debris.
  • Extra-large main filter ensures a steady, even airflow which extends filter life and eliminates premature clogging.
  • The microfilter, a final step in pre-filtration, protects the motor and acts as a barrier to even bacteria-size particles.
  • Motor thermal protection device prevents overheating caused by failure to keep filters clean or by accidental blockage in a nozzle or hose.
  • Conductive plastic hose provides ESD protection.
  • The wheeled trolley adds mobility. Glides over all surfaces.
  • Positive twist safety latches offer security by preventing the container from opening if the vacuum is dropped.
  • The vacuum cleaner and accessories are packaged in cleanroom compatible polyethylene bags to prevent contamination from packing materials during shipping.
  • Activated carbon filter absorbs toxic gases, preventing their escape through the vacuum’s exhaust
  • Ten foot flexible plastic hose allows access through small ports of machinery
  • Standard downstream HEPA exhaust filter maintains absolute cleanroom standards by retaining particles generated by the motor

Technical Specifications

Description Unit SS Vapor
Collection Type - Vapor
Type of Power - 1-Phase
Voltage @ 60 Hz V 120 / 220
Power @ 60 Hz HP (W) 1.48 (1100)
Waterlift, max. in. (mm) H₂O 82 (2083)
Airflow, max. CFM (L/min) 45 (1274)
Current, max. amps 10/5
Container Capacity gallons (L) 3.25 (12.3)
Machine Inlet Diameter mm 32
Dimensions (L x W x H) in. (mm) 22 x 22 x 38.5 (559 x 559 x 978)
Weight lb. (kg) 65 (30)
Cord Length ft. (m) 30 (9)
Sound Pressure Level @ 3’3” (ISO 3744) dB(A) 61
