Lighthouse Solair 5100 Airborne Particle Counter

SKU: LE-402999455

Price on request

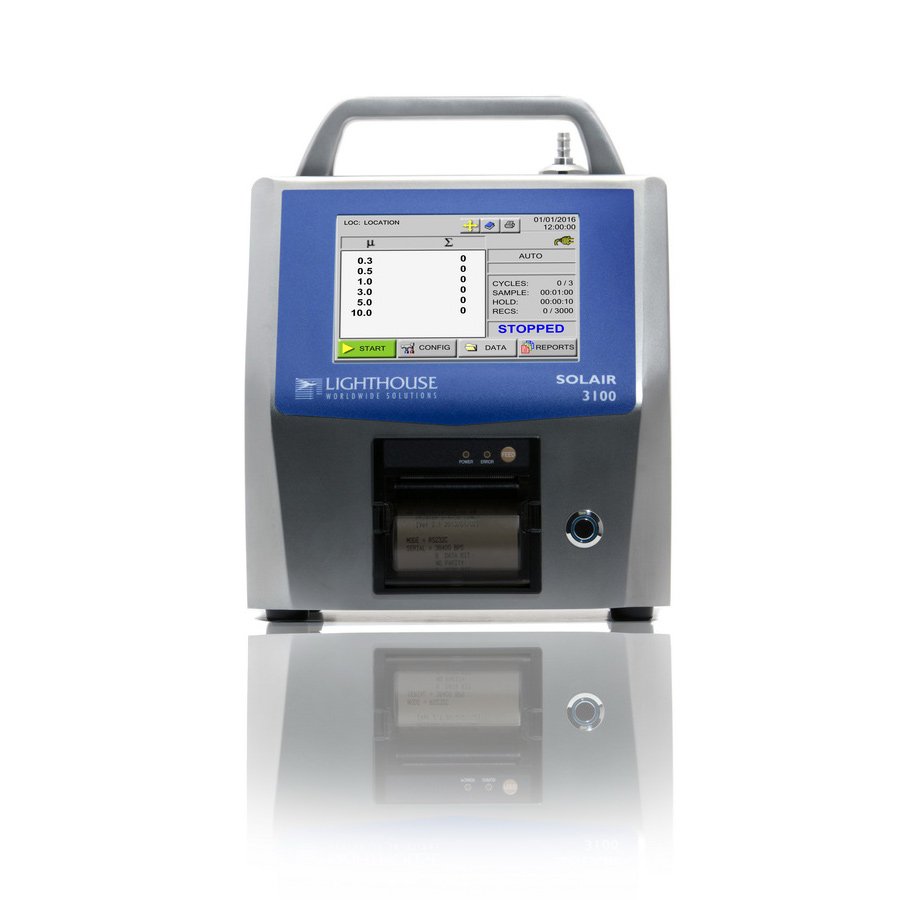

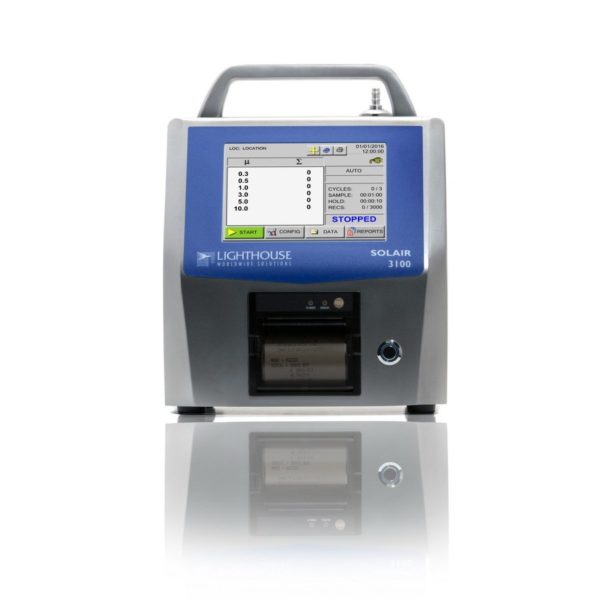

Lighthouse SOLAIR 3100 portable airborne particle counters incorporate our Extreme Life Laser Diode Technology sensor to produce the industry’s first 20-year MTTF laser lifespan. The SOLAIR 3100 offers sensitivities of 0.3 microns, at a flow rate of 1.0 CFM (28.3 LPM). Housed in a sleek 304 stainless steel enclosure, the SOLAIR 3100 is ideal for use in facilities that require a durable instrument finish.

Enclosure
Enclosure
304 Stainless Steel
Communication
Communication
Ethernet
Serial
USB
Particle Counter Type
Particle Counter Type
Portable
Pump
Pump
Yes
  • Standard - 6 channels: 0.5µm, 0.7µm, 1.0µm, 3.0µm, 5.0µm, 10.0µm
  • Optional - 6 channels: 0.5µm, 1.0µm, 3.0µm, 5.0µm, 10.0µm, 25.0µm
  • Custom: Opt Channels Avail: 0.5, 0.7, 1.0, 2.0, 2.5, 3.0, 5.0, 10.0, 15.0, 20.0, 25.0μm
  • Optional - 8 channels: 0.5µm, 1.0µm, 2.0µm, 3.0µm, 5.0µm, 7.0µm, 10.0µm, 25.0µm
  • Standard - 8 channels: 0.5µm, 0.7µm, 1.0µm, 2.0µm, 3.0µm, 5.0µm
  • No
  • Yes
Clear
Call for Price

The SOLAIR 5100 is a 1.0 CFM (28.3 LPM) flow rate, battery operated portable aerosol particle counter with built-in printer and 5.7″ color touch-screen, housed in a Stainless Steel enclosure featuring a sealed inlet nozzle for protection during wipe down. The SOLAIR 5100 provides 6 channels of simultaneous particle counting, supports up to 3000 data records, includes a built-in USB Flash Drive port for data download, supports 4 analog inputs for optional environmental sensors and includes a PIC connection providing the user a host of additional capabilities. International Language Support includes English, German, Italian, French, Chinese, and Spanish. Optional accessories include Temp/RH, Differential Pressure and Air Velocity Sensors. Data is displayed in differential or cumulative mode. Data is easily downloaded to a PC with the included LMS Express 7.0 for 21 CFR Part 11 data security. Connection to external systems via Ethernet, USB, RS-232 or RS-485 Modbus protocol. This model is designed to meet the requirements of the ISO 21501-4 Standard and include a 2 year limited warranty. Includes 21501-4 calibration certificate

  • CD: S3100, 5100, & Boulder Counter (Gen E) Op Manual, LMS XChange Transfer Software & Manual
  • CD: LMS Express 7
  • Isokinetic Sampling Probe 1.0 CFM Tripod Mount (Series 316L SS)
  • 7" Telescoping Tripod
  • Sample Tubing, Beveline, 3/8" OD 1/4" ID (10 ft length)
  • Purge Filter Assy, 0.1µm @ 1.0 CFM Flow Rate (Direct mounts on barbed fitting)
  • Thermal Printer Paper (2 pack) - if printer option ordered
  • USB Download Cable, type A to B
  • Power Cord (Please specify cord style at time of purchase) (-US, -UK, -EU, -CN)

The SOLAIR 5100 is a 1.0 CFM (28.3 LPM) flow rate, battery operated portable aerosol particle counter with built-in printer and 5.7″ color touch-screen, housed in a Stainless Steel enclosure featuring a sealed inlet nozzle for protection during wipe down. The SOLAIR 5100 provides 6 channels of simultaneous particle counting, supports up to 3000 data records, includes a built-in USB Flash Drive port for data download, supports 4 analog inputs for optional environmental sensors and includes a PIC connection providing the user a host of additional capabilities. International Language Support includes English, German, Italian, French, Chinese, and Spanish. Optional accessories include Temp/RH, Differential Pressure and Air Velocity Sensors. Data is displayed in differential or cumulative mode. Data is easily downloaded to a PC with the included LMS Express 7.0 for 21 CFR Part 11 data security. Connection to external systems via Ethernet, USB, RS-232 or RS-485 Modbus protocol. This model is designed to meet the requirements of the ISO 21501-4 Standard and include a 2 year limited warranty. Includes 21501-4 calibration certificate

  • CD: S3100, 5100, & Boulder Counter (Gen E) Op Manual, LMS XChange Transfer Software & Manual
  • CD: LMS Express 7
  • Isokinetic Sampling Probe 1.0 CFM Tripod Mount (Series 316L SS)
  • 7" Telescoping Tripod
  • Sample Tubing, Beveline, 3/8" OD 1/4" ID (10 ft length)
  • Purge Filter Assy, 0.1µm @ 1.0 CFM Flow Rate (Direct mounts on barbed fitting)
  • Thermal Printer Paper (2 pack) - if printer option ordered
  • USB Download Cable, type A to B
  • Power Cord (Please specify cord style at time of purchase) (-US, -UK, -EU, -CN)
