Nilfisk GM 80CR Light Industrial Vacuum

SKU: 7656443567

$1,488.46$1,648.64

Meets cleanroom standards up to & including Class 10 (ISO 4)

Filter Type
Filter Type
HEPA
ULPA
Voltage
Voltage
110/120V
220/230V
Collection Type
Collection Type
Dry Collection
Type of Power
Type of Power
1-Phase
Airflow (cfm)
Airflow (cfm)
80 (cfm)
Container Capacity (gal.)
Container Capacity (gal.)
3.24 (gal.)
Sound Pressure (db)
Sound Pressure (db)
61 (db)
  • HEPA
  • ULPA
  • 110/120V
  • 220/230V
Clear

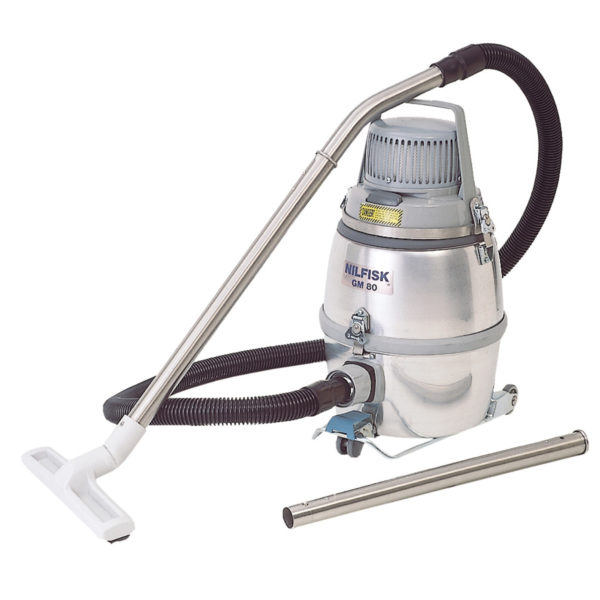

Portable Cleanroom Vacuum

The GM 80CR is specifically designed and packaged for use in cleanrooms. Through its unique four-stage filtration system, the GM 80CR safely collects and retains fine dust and powders. It comes equipped with an ULPA exhaust filter (captures 99.999% of ultra fine particles, down to and including 0.12 microns). The GM 80CR’s motor is interference suppressed so it will not affect electronic equipment in cleanrooms.

Features and Benefits

  • In the first stage of separation, a 2.25-gallon capacity disposable paper bag captures the bulk of collected debris.
  • Extra-large main filter ensures a steady, even airflow which extends filter life and eliminates premature clogging.
  • The microfilter, a final step in pre-filtration, protects the motor and acts as a barrier to even bacteria-size particles.
  • Motor thermal protection device prevents overheating caused by failure to keep filters clean or by accidental blockage in a nozzle or hose.
  • Conductive plastic hose provides ESD protection.
  • The wheeled trolley adds mobility. Glides over all surfaces.
  • Positive twist safety latches offer security by preventing the container from opening if the vacuum is dropped.
  • The vacuum cleaner and accessories are packaged in cleanroom compatible polyethylene bags to prevent contamination from packing materials during shipping.
Description Unit GM 80CR
Collection Type - Dry
Type of Power - 1-Phase
Voltage @ 60 Hz V 115 / 220
Power @ 60 Hz HP (W) 1.48 (1100)
Waterlift, max. in. (mm) H₂O 84 (2134)
Airflow, max. CFM (L/min) 80 (2265)
Current, max. amps 10 / 5
Container Capacity gallons (L) 3.24 (12.3)
HEPA Filter Area, downstream ft2 (m2) 3.55 (0.33)
ULPA Exhaust Filter Efficiency ft2 (m2) 4.95 (.45)
Dimensions (L x W x H) in. (mm) 14 x 12 x 16 (356 x 305 x 406)
Weight lb. (kg) 13 (5.9)
Cord Length ft. (m) 30 (9.1)
Protection Class - IP40
Sound Pressure Level @ 6’ 6” dB(A) 61


Portable Cleanroom Vacuum

The GM 80CR is specifically designed and packaged for use in cleanrooms. Through its unique four-stage filtration system, the GM 80CR safely collects and retains fine dust and powders. It comes equipped with an ULPA exhaust filter (captures 99.999% of ultra fine particles, down to and including 0.12 microns). The GM 80CR’s motor is interference suppressed so it will not affect electronic equipment in cleanrooms.

Features and Benefits

  • In the first stage of separation, a 2.25-gallon capacity disposable paper bag captures the bulk of collected debris.
  • Extra-large main filter ensures a steady, even airflow which extends filter life and eliminates premature clogging.
  • The microfilter, a final step in pre-filtration, protects the motor and acts as a barrier to even bacteria-size particles.
  • Motor thermal protection device prevents overheating caused by failure to keep filters clean or by accidental blockage in a nozzle or hose.
  • Conductive plastic hose provides ESD protection.
  • The wheeled trolley adds mobility. Glides over all surfaces.
  • Positive twist safety latches offer security by preventing the container from opening if the vacuum is dropped.
  • The vacuum cleaner and accessories are packaged in cleanroom compatible polyethylene bags to prevent contamination from packing materials during shipping.
Description Unit GM 80CR
Collection Type - Dry
Type of Power - 1-Phase
Voltage @ 60 Hz V 115 / 220
Power @ 60 Hz HP (W) 1.48 (1100)
Waterlift, max. in. (mm) H₂O 84 (2134)
Airflow, max. CFM (L/min) 80 (2265)
Current, max. amps 10 / 5
Container Capacity gallons (L) 3.24 (12.3)
HEPA Filter Area, downstream ft2 (m2) 3.55 (0.33)
ULPA Exhaust Filter Efficiency ft2 (m2) 4.95 (.45)
Dimensions (L x W x H) in. (mm) 14 x 12 x 16 (356 x 305 x 406)
Weight lb. (kg) 13 (5.9)
Cord Length ft. (m) 30 (9.1)
Protection Class - IP40
Sound Pressure Level @ 6’ 6” dB(A) 61
